#1 IN THE MRO MARKET

OIL & GAS BELTS

BUILT WITH BRUTAL STRENGTH TO SAVE YOUR OPERATION FROM EXPENSIVE DOWNTIME

MUD PUMPS, PUMP JACKS, ROCK CRUSHERS, SHALE SHAKERS & MORE

POWERING THE PULSE OF THE WORLD’S TOUGHEST OIL & GAS OPERATIONS

We Are on a Mission Against Downtime.

Across vast oilfields to the dangerous depths of the sea-bed. Through extreme weather conditions and the intense heat at the heart of your machinery. Against the aggressive conditions of pumping mud, crushing rock and shaking shale. Where minutes are millions, and downtime puts platforms at risk. Carlisle Belts power the pulse of your operation. Engineered with brutal strength and designed for maximum stability in operation. With extra-strong and abrasion-resistant Kevlar cords and heavy-duty protective fabric layering. Our oil and gas belts are feature-packed to deliver longer life and greater power output on the most aggressive machinery.

Keep Your Industry in Motion with Carlisle® Belts by Timken

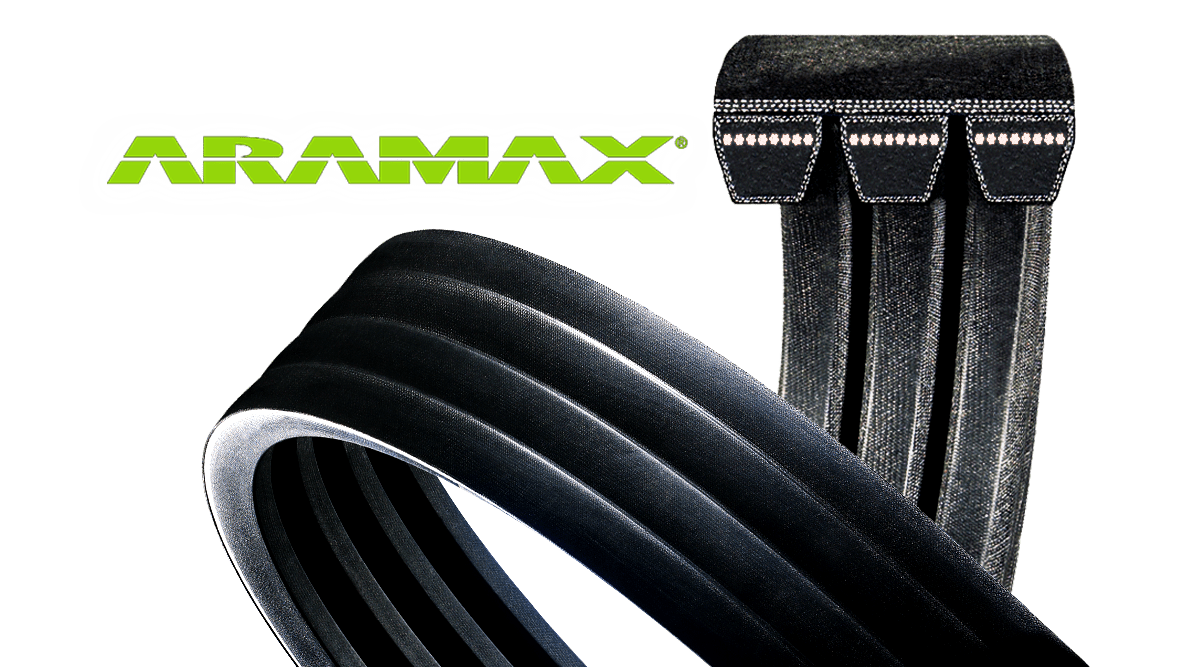

R8VK SECTIONS

ARAMAX® WEDGE-BAND

Super-high performance banded belt built to excel in harsh oil field applications. Featuring the toughest Kevlar® belt cords and multi-ply tie banded for extraordinary strength.

OUTSTANDING STRENGTH & STABILITY

HIGH-PERFORMANCE BANDED BELTS

Image showing Gold-Ribbon® Cog-Band®ed Belts by Carlisle Belts
R3VX & R5VX SECTIONS

POWER-WEDGE® COG-BAND®

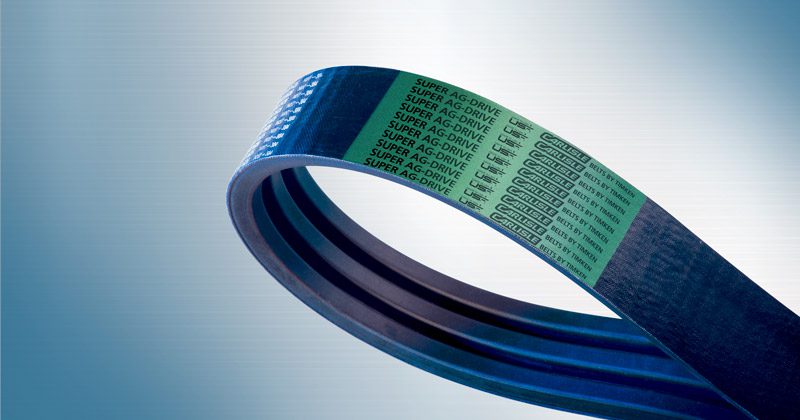

Image showing the Carlisle Belts Agricultural Banded Belt an Agricultural Belt and Banded Belt for Combines, Harvesters, and Tractors
R3V, R5V & R8V SECTIONS

WEDGE-BAND®

Image showing Gold-Ribbon® Cog-Band®ed Belts by Carlisle Belts
RBX, RCX & RDX SECTIONS

GOLD-RIBBON® COG-BAND®

AP, BP, CP, DP & EP SECTIONS

SUPER BLUE RIBBON® V-BELT

The workhorse of wrapped v-belts! Delivering trouble-free transmission on a range of oilfield applications including injection pumps, mud pumps, gas compressors and pumping units.

EXTREME GRIP STRENGTH!

RAW-EDGE V-BELTS

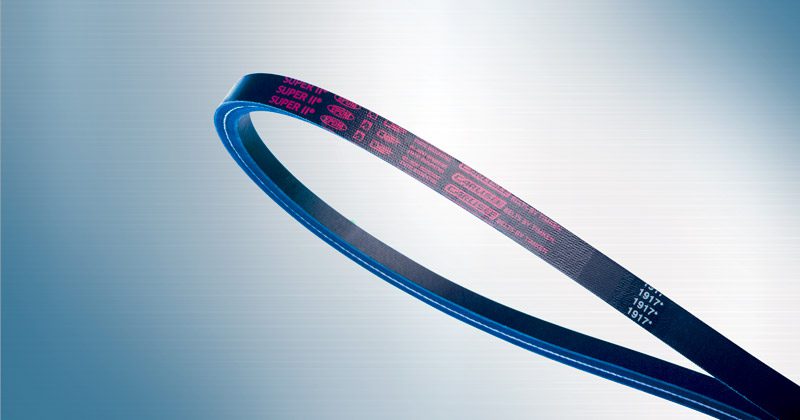

Image showing Super II® V-Belt by Carlisle Belts
A, B & C SECTIONS

SUPER II® V-BELTS

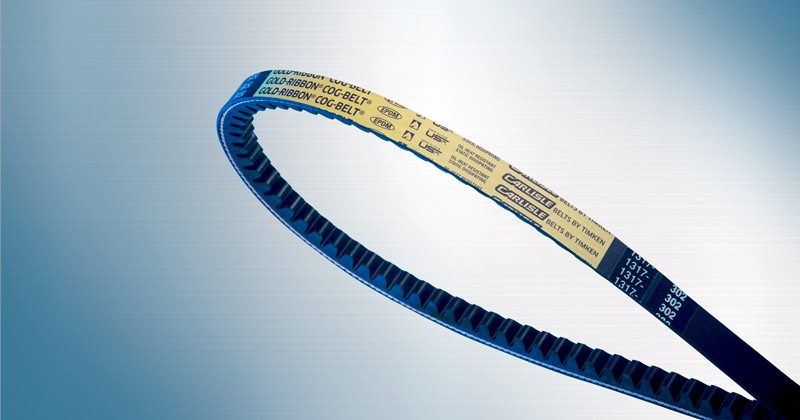

Gold-Ribbon® Cog-Belt® by Carlisle Belts®
AX, BX, CD & DX SECTIONS

GOLD-RIBBON® COG-BELT®

Image showing Super Blue Ribbon V-Belts by Carlisle Belts
3VX, 5VX, 8VX, SPZX, SPAX, SPBX & SPCX SECTIONS

POWER-WEDGE® COG-BELT®

8M, 14M & 20M SECTIONS

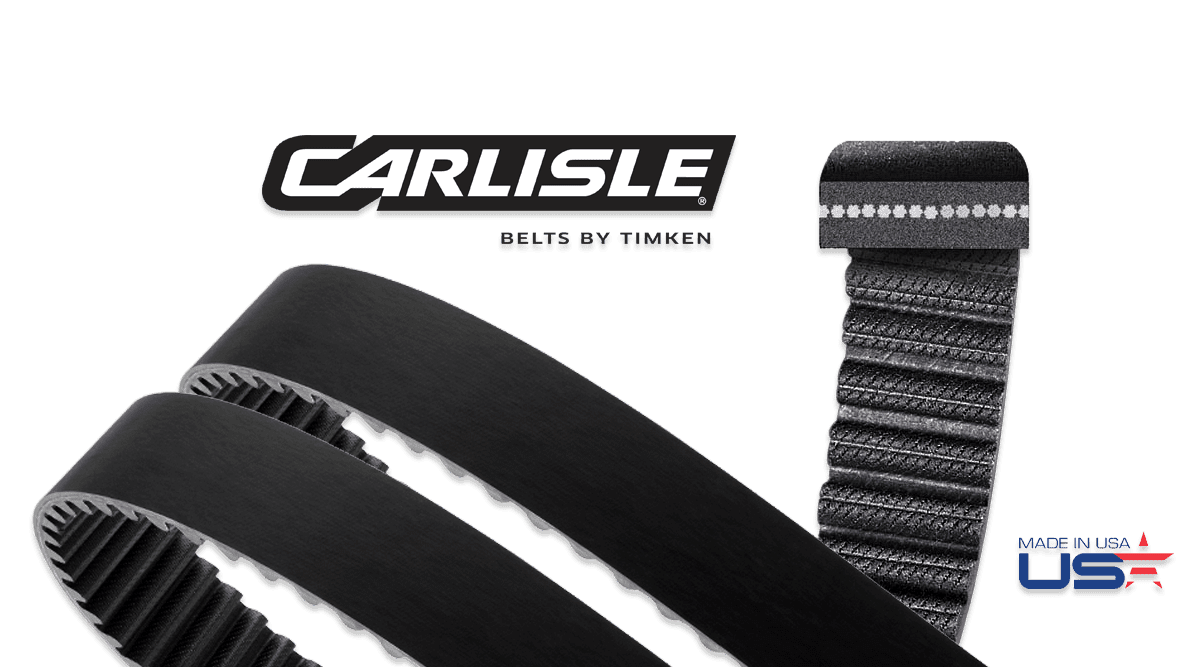

PANTHER® BELTS

The strong, silent type, Panther® is the high-torque synchronous belt range that purrs. Boosting operational efficiency to up to 99%!

Panther® Timing Belts by Carlisle®Belts
C R Products Ltd Supplier of Drive Belts Across EMEA
CARLISLE BELTS® BY TIMKEN

DOWNLOAD OUR INDUSTRIAL BELTS CATALOGUE

Download our industrial belts brochure to explore our huge range of oil & gas belts. From raw-edge v-belts to extra-strong banded belts and a wide range of complementary pulleys and sprockets by Martin Sprockets Inc. Download Now!

FREQUENTLY ASKED QUESTIONS (FAQS)

Want more information?

WHAT BELTS CAN I USE ON PUMP TRUCKS?

We recommend using the Power-Wedge® Cog-Belt® in single 5VX sections. Or, the Power-Wedge® Cog-Band® in multiple R5VX sections. These belts are suitable for pump trucks, hot oil trucks, kill trucks and transport trucks.

WHAT BELTS CAN I USE ON INJECTION PUMPS?

We recommend using either the Power-Wedge® Cog-Belt® in single 5VX sections. Or, the Power-Wedge® Cog-Band® in multiple R5VX sections. You can also use the Super Blue Ribbon® V-Belt in single CP sections. Or, the Super Vee-Band® in banded RCP sections. If you require further support, please contact our sales team.

WHAT BELTS CAN I USE ON MUD PUMPS?

Mud pump belts require added strength and stability to cope with the heavy-shock loads and high horsepower ratings of these aggressive applications. We recommend choosing a belt with Kevlar® cords for up to 50% greater power output. For drives between 250″ and 600″, we recommend the Wedge-Band® or ARAMAX Wedge-Band® in R8V or R8VK bands. Or, for classical v-belt sections the Super Blue Ribbon® V-belt in multiple DP sections.

WHAT BELTS CAN I USE IN COOLING TOWERS?

We recommend using either the Power-Wedge® Cog-Belt® in single 5VX sections. Or, the Power-Wedge® Cog-Band® in multiple R5VX sections. New units are beginning to use synchronous belts where we would recommend using the Panther® belt for significant noise reduction and drive efficiency improvements.

WHAT BELTS CAN I USE IN GAS COMPRESSORS?

We recommend using the Power-Wedge® Cog-Belt® in single 5VX sections, the Power-Wedge® Cog-Band® in multiple R5VX sections, the Super Blue Ribbon® V-Belt in single BP/CP sections, or the Super Vee-Band® in banded RBP/RCP sections.

WHAT BELTS CAN I USE IN PUMPING UNITS?

For small oilfield pumping units, we recommend simultaneously running 2-3 Super Blue Ribbon® V-Belts in BP sections. For larger units, we recommend simultaneously running 3-8 Super Blue Ribbon® V-Belts in CP sections. Your requirements will be specific to your drive size. For more information on how using cogged v-belts can reduce drive size contact our sales team.

BECOME A DISTRIBUTOR

Bring the power of Carlisle Belts to your network. Join us today to access account management, product support and exclusive discounts on 600,000+ belts.

DESIGN YOUR OEM DRIVE

Design your drive with an expert by your side. Get in touch now for support on maximising the efficiency and power output of your new machinery with CRP.

BUY DRIVE BELTS

Get in touch with our sales team today to send your part numbers, quantities and delivery options and receive a no-obligation quote within 24 hours.
